IB_Designable

Pitfalls and Gotchas and Bears, oh my!

Chris Hulbert - splinter.com.au

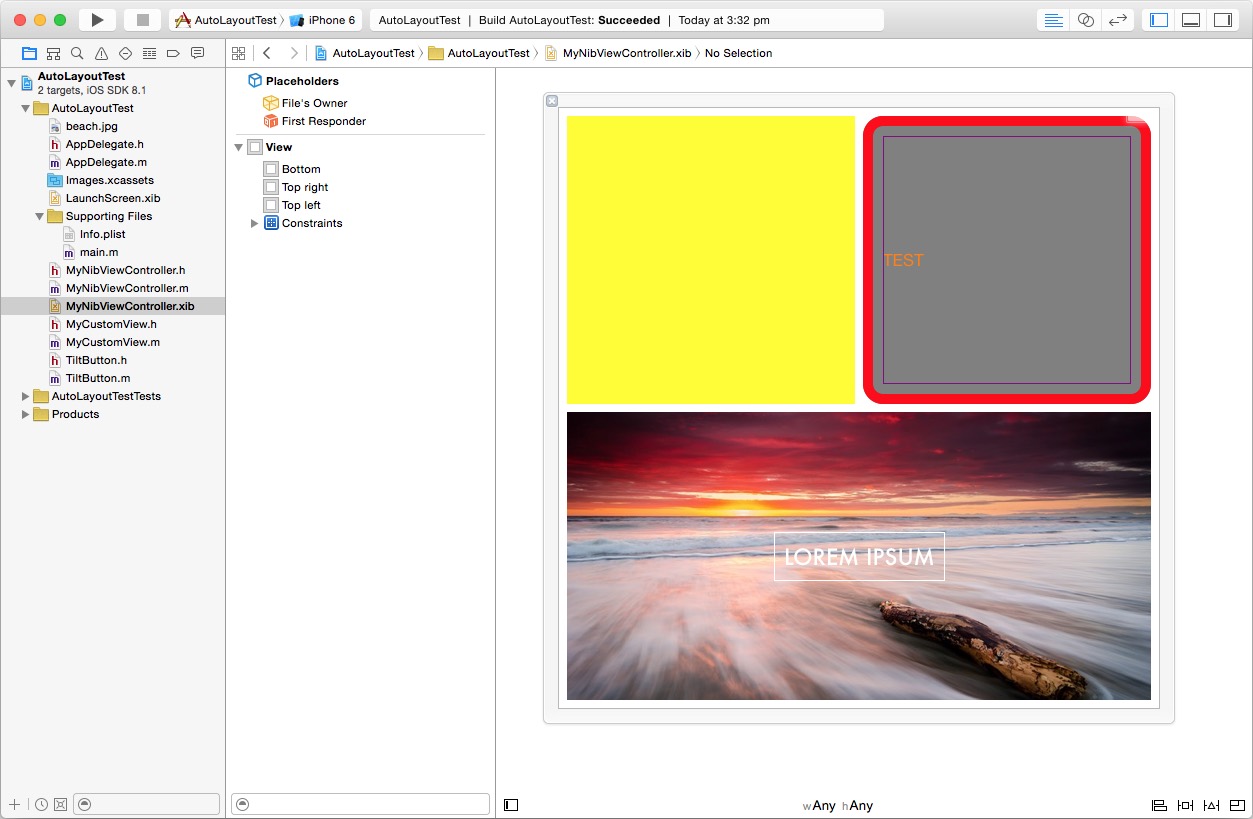

End result

Contents

• How to make one
• How to use one
• Use a commonInit
• Pitfalls
• Debugging

How to use it

Objective-C

#import <UIKit/UIKit.h>

IB_DESIGNABLE

@interface MyCustomView : UIView

@end

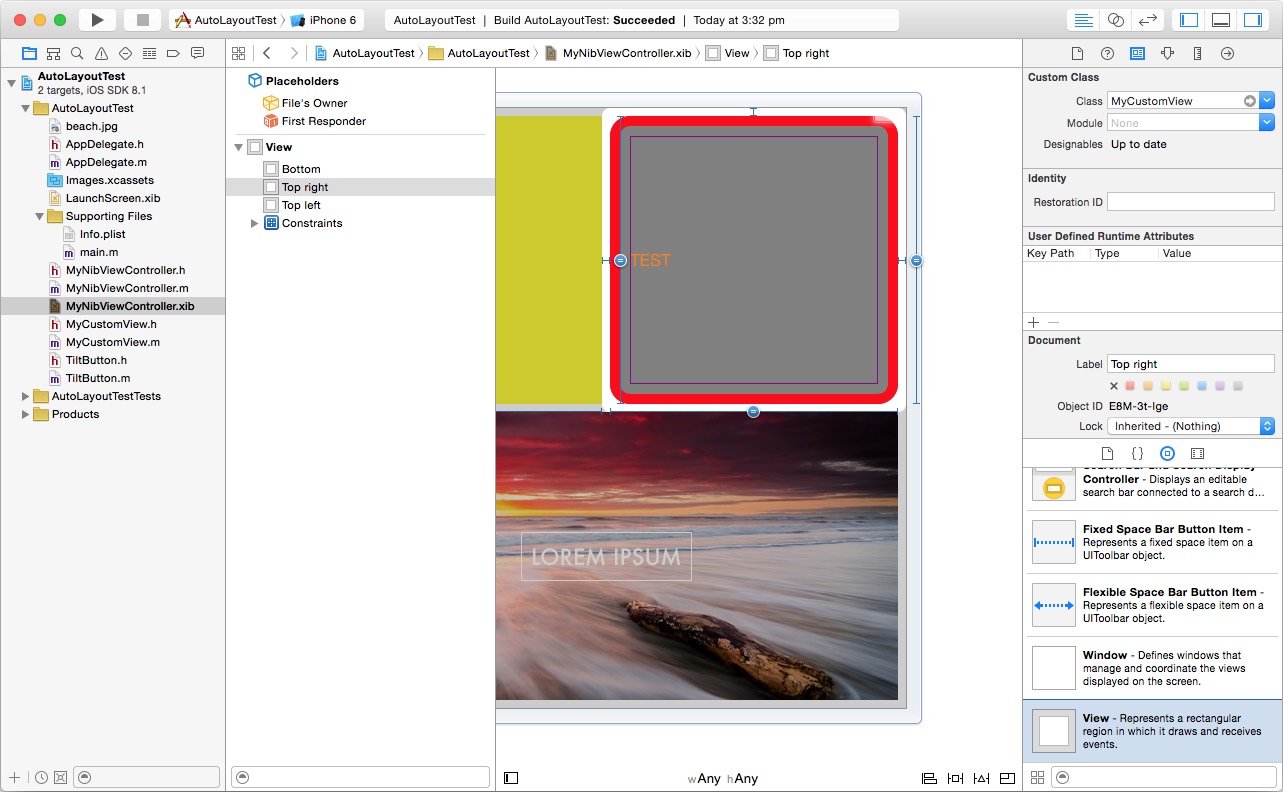

Drop into IB

Where did I come from, daddy?

• Run time, manual creation
• Run time, loading from xib
• Design time

IB_DESIGNABLE Setup

Pitfall

That's right folks, IBDesignable doesn't use NSCoding

How to make designer babies

- (instancetype)initWithFrame:(CGRect)frame {
    if (self = [super initWithFrame:frame]) {
#if !TARGET_INTERFACE_BUILDER
        [self commonInit]; // Run time, manual creation.
#endif
    }
    return self;
}
- (void)awakeFromNib {
    [super awakeFromNib];
    [self commonInit]; // Run time, loading from xib.
}
- (void)prepareForInterfaceBuilder {
    [super prepareForInterfaceBuilder];
    [self commonInit]; // Design time.
}


Why prepare For Interface Builder?

Why not call from initWithFrame? 2 birds with one stone: manual run time + design time.

KVC of IB properties occurs after initWithFrame, so your settings eg backgroundColor would be clobbered.

Common code

@implementation MyCustomView {
    UILabel *_label;
}

- (void)commonInit {
    _label = [[UILabel alloc] init];
    _label.text = @"TEST";
    [self addSubview:_label];
}

- (void)layoutSubviews {
    [super layoutSubviews];
    _label.frame = self.bounds;
}

@end

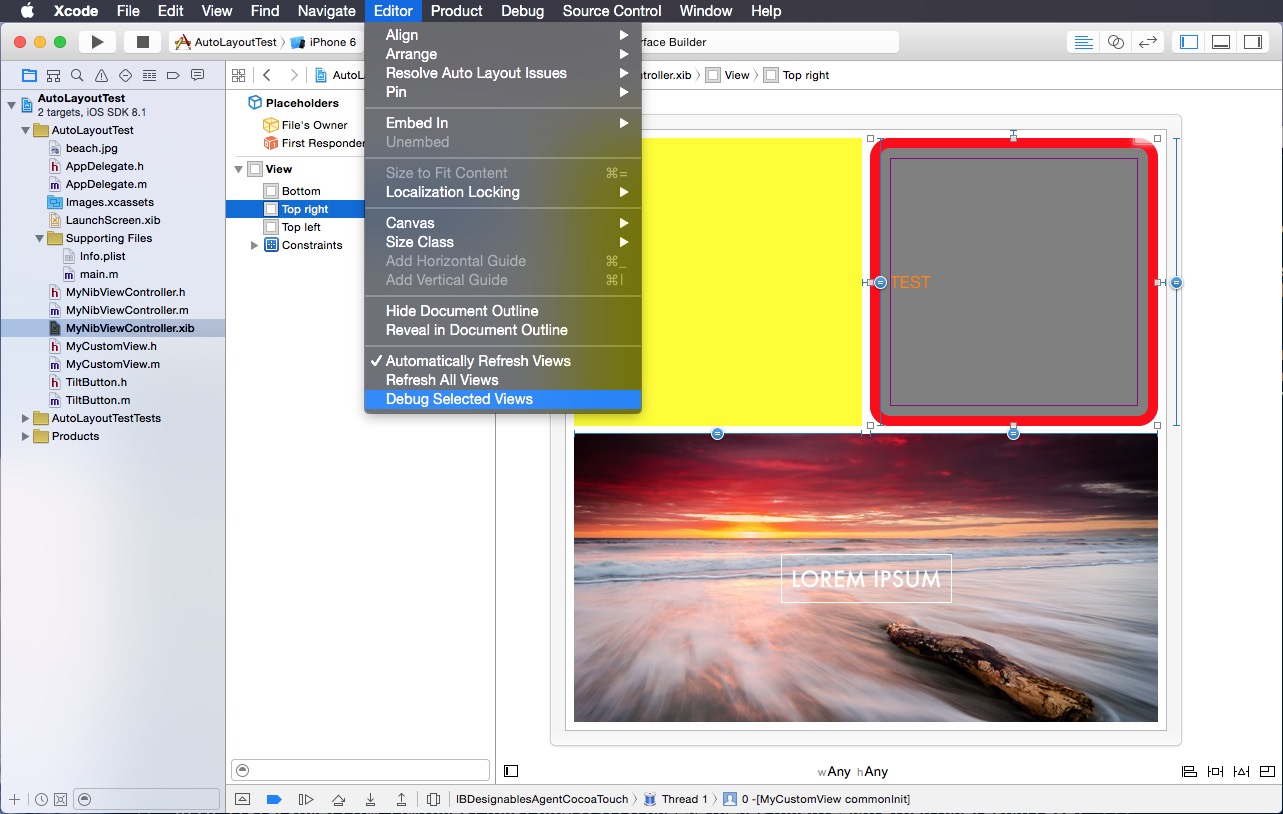

When things go bad

IB's gone full debug

Images and other Resources

[UIImage imageNamed:] won't work, as it runs from a framework, no bundle context. Instead:

[UIImage imageNamed:@"MyImage"
           inBundle:[NSBundle bundleForClass:[self class]]
    compatibleWithTraitCollection:nil];


The end

So please remember:

• How to use and insert into IB
• Use a commonInit
• Doesn't use NSCoding, it uses KVC
• Careful with bundle resources
• Debug from Editor menu

Chris Hulbert - splinter.com.au
